Reytop Mineral Water Production Line Technical Scheme

In the mineral water production industry, a set of efficient, compliant and stable mineral water production equipment and scientific mineral water production line technical scheme is the core competitiveness for enterprises to seize the market and ensure product quality. Reytop has been deeply engaged in the field of mineral water production equipment. Combining the requirements of the 2026 new mineral water industry standards and years of practical experience, it provides all-scale mineral water production enterprises with complete mineral water production equipment configuration, standardized mineral water production line process flow and customized mineral water production line technical scheme, helping enterprises reduce production costs, improve production efficiency, avoid compliance risks and seize the development dividends of the industry. At present, the mineral water production equipment market is developing rapidly towards automation, intelligence and environmental protection. In 2026, the global bottled water processing equipment market scale is expected to reach 8.16 billion US dollars, with an average annual growth rate of 8.85%, and the domestic mineral water market scale is expected to exceed 180 billion yuan. Choosing professional mineral water production equipment and mineral water production line technical scheme is the key premise for enterprises to achieve long-term development, and also the core measure to cope with the upgrading of industry standards and avoid the risk of production capacity elimination.

I. Core Process Flow of Mineral Water Production Line

The core of mineral water production lies in “purification and quality preservation, sterile filling and standardized packaging”, which complies with the control requirements of the 2026 new mineral water industry standards for the standardization of production processes. Reytop mineral water production line adopts a standardized closed-loop process design with full-process sterile control to ensure that each bottle of mineral water meets the requirements of “Drinking Natural Mineral Water” (GB 8537) and “Sanitary Standard for Drinking Water” GB5749-2006. The specific mineral water production line process flow is as follows:

Water Supply System → Pretreatment System → Hollow Ultrafiltration/Nanofiltration → Sterilization System → Filling System → Packaging System

The entire mineral water production line process flow is interlocking. From raw water collection to finished product delivery, each link is strictly controlled. It not only strictly retains the mineral nutrients of natural mineral water, meets the quantitative requirements of the 2026 industry standards for mineral content, but also completely eliminates pollution. At the same time, it adapts to the production needs of different specifications and packaging types, balances efficiency and quality, and perfectly meets the current industry’s strict requirements for drinking water safety, the trend of automated production and the standards of compliant operation, highlighting the professional advantages of Reytop mineral water production equipment.

II. Complete Configuration of Reytop Mineral Water Production Equipment

Reytop mineral water production equipment covers the entire process of “bottle blowing – water treatment – filling – packaging – palletizing”, without the need to additionally match third-party mineral water production equipment. It is suitable for various packaging methods such as small plastic bottles, 5-20L disposable large barrels, glass bottles, 3-gallon and 5-gallon large barrels, and cans. It can be flexibly customized according to the enterprise’s production scale. The complete set of mineral water production equipment meets the equipment requirements for handling the SC production license of drinking natural mineral water. The specific composition and configuration of the mineral water production equipment are as follows:

• Bottle Blowing System: Automatic bottle blowing machine, as the pre-core equipment of mineral water production equipment, is responsible for manufacturing various PET bottles and glass bottles. It can adapt to various specifications such as 350ml, 500ml, 1L, 1.5L and 5-20L, realize rapid bottle type switching, meet different market needs, and adopt lightweight design to reduce packaging costs, conform to the industry’s lightweight development trend, and adapt to the pre-bottle blowing needs of various mineral water production lines.

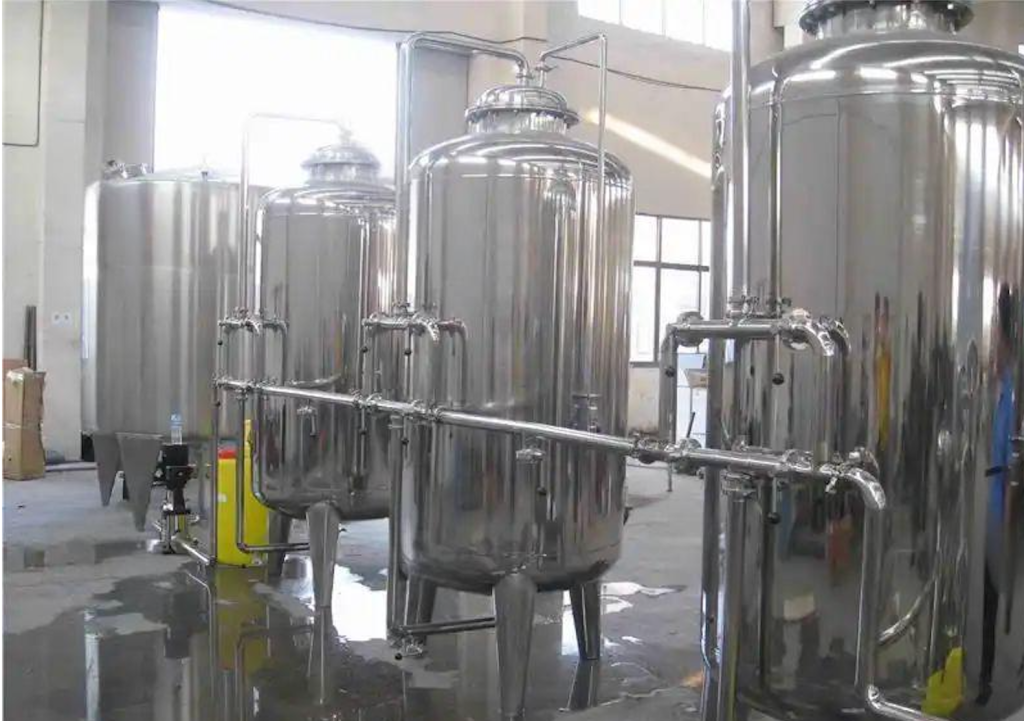

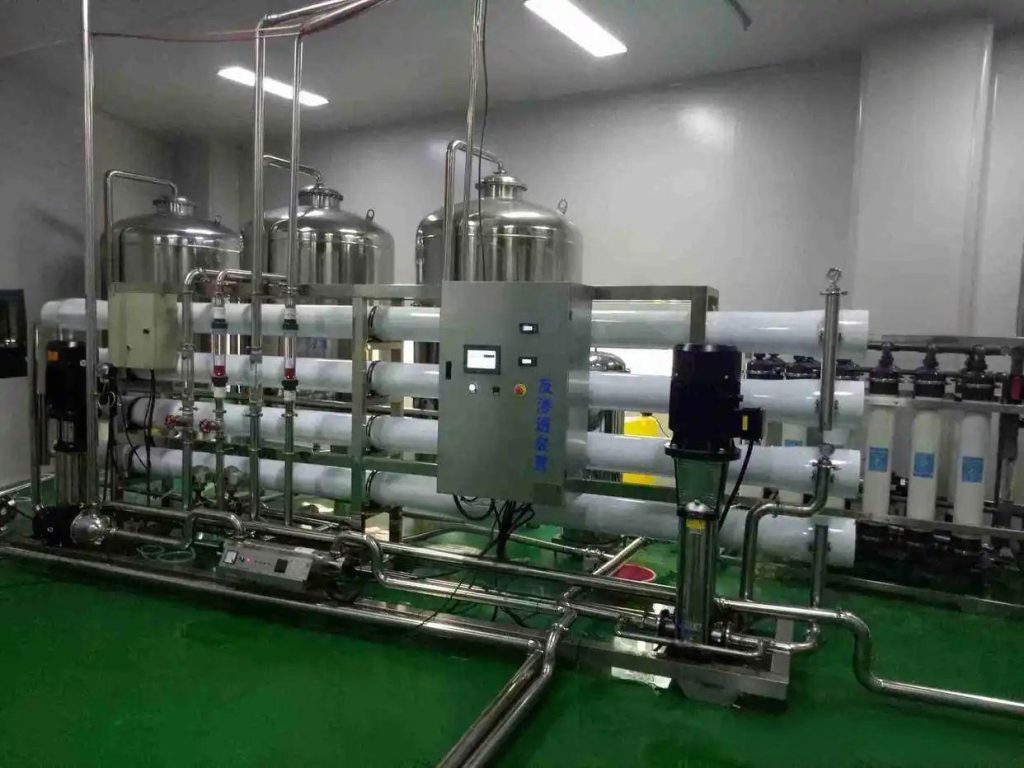

• Water Treatment System: As the core component of mineral water production equipment, it is mainly used for raw water filtration and disinfection, and is the key to ensuring the quality of mineral water and meeting the control requirements of the 2026 industry standards for microorganisms and pollutants. The complete set of mineral water treatment equipment includes raw water tank, raw water pump, water pretreatment unit, mechanical filter, activated carbon filter, precision filter, ultrafiltration equipment, ultraviolet sterilizer, ozone generator and pure water tank. It can completely remove impurities, heavy metals such as manganese and iron, and microorganisms in raw water, and accurately retain natural minerals to ensure that indicators such as metasilicic acid and total dissolved solids meet the requirements of the new industry standards. Among them, the raw water pump adopts a special pump from Nanfang, which can stabilize the water supply pressure and water supply volume of the system; the mechanical filter can remove particulate impurities above 20um, support backwashing and forward washing, and extend the service life of mineral water production equipment; the activated carbon filter adopts fruit shell activated carbon, which can adsorb pigments, odors and pesticide pollutants, and reduce the residual halogen value of water; the precision filter is made of engineering plastic or SUS304 material, with PPF filter element inside, ensuring that the particle size of water entering the ultrafiltration system is less than 5um; the hollow fiber ultrafiltration unit has a hollow fiber outer diameter of 0.4-2.0mm and an inner diameter of 0.3-1.4mm, which can operate continuously for a long time, with a molecular weight cut-off of thousands to hundreds of thousands, and is the core component of mineral water treatment equipment.

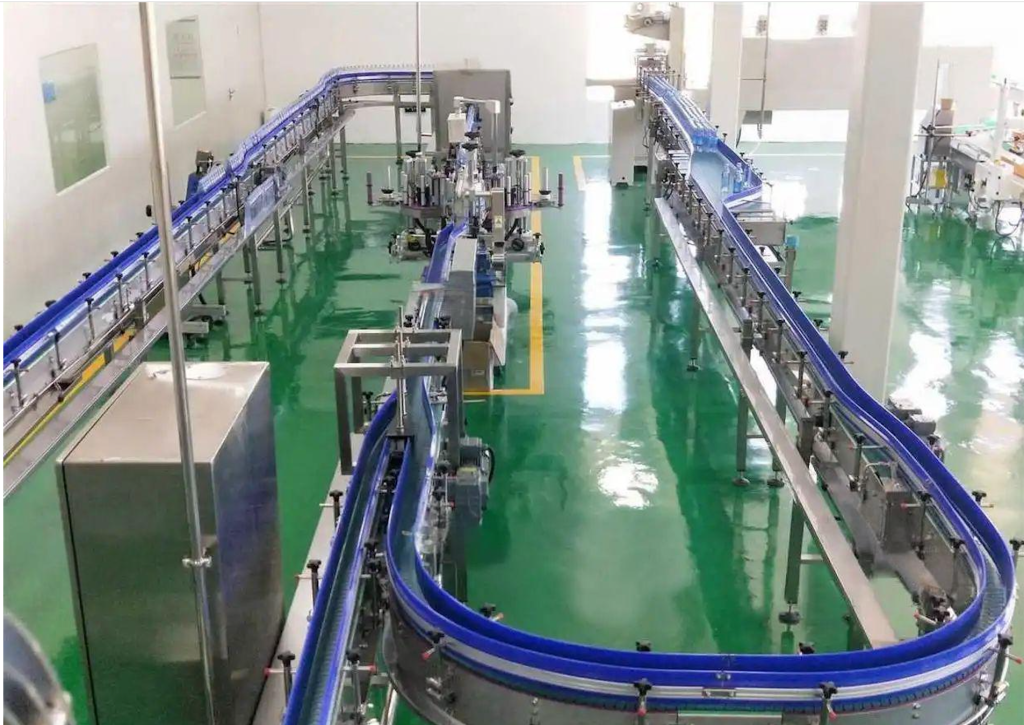

• Conveying and Bottle Arranging System: As the connecting component of mineral water production equipment, it includes a bottle arranging machine (for orderly arrangement of bottles), an air duct (for efficient conveying of bottles) and a conveying line. It realizes seamless connection from bottle blowing to filling, reduces manual intervention, lowers the breakage rate, improves the production continuity of the mineral water production line, adapts to the wind conveying needs of small bottle mineral water production lines, and can be equipped with a cap conveying and sterilizing machine and a cap arranging and cleaning machine to further improve production sterility and perfect the connection performance of mineral water production equipment.

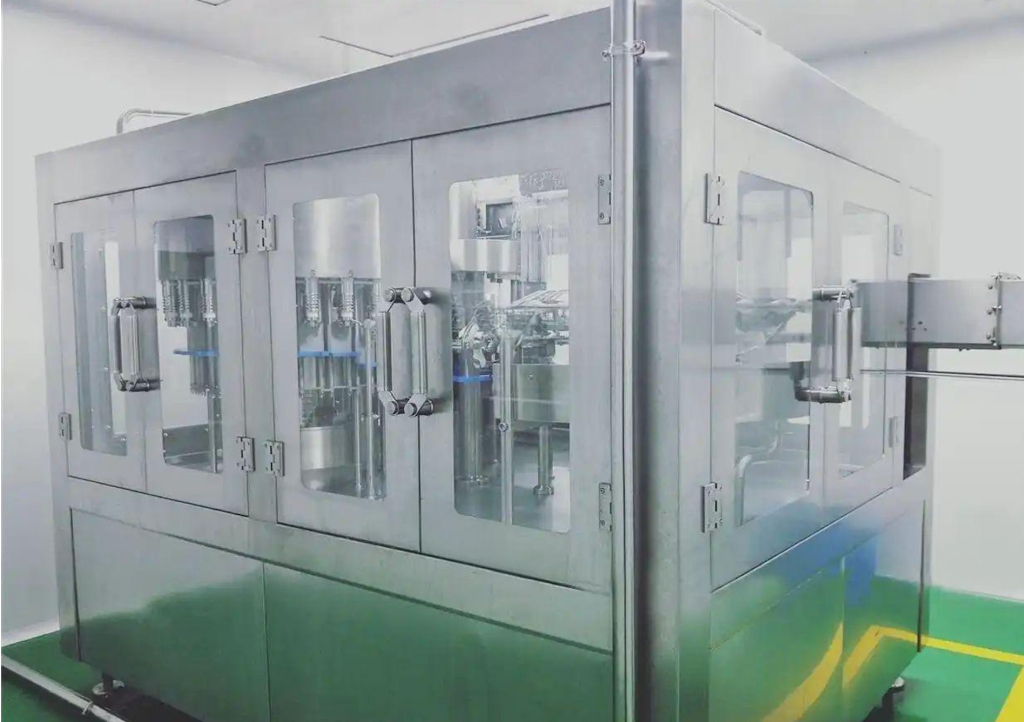

• Filling System: The core mineral water filling equipment is a three-in-one filling machine (bottle washing, filling and capping integrated machine), which integrates bottle washing, filling and capping. It is suitable for PET bottles of different thicknesses and types, with a filling accuracy of 99.9% and precise quantitative control, meeting the requirements of food production hygiene standards and 2026 aseptic cold filling technology. The mineral water filling equipment adopts a centralized lubrication system, which can perform fixed-point, timed and quantitative lubrication. The metal parts of the whole machine are made of 304 stainless steel, which is not easy to rust and is more in line with the hygiene requirements of beverage production; the bottom drives the auxiliary gears on both sides through the large main gear to ensure the synchronous operation of the production modules. The bottles directly enter the filling valve group through the stainless steel impeller, which has good inclusiveness for the bottle mouth, is suitable for various PET bottles, and the buckle-type lifting design can avoid damaging the bottle mouth; the capping adopts an inertial magnetic torque capping head, with accurate positioning and no damage to the bottle cap. At the same time, the mineral water filling equipment adopts an advanced Japanese Mitsubishi Programmable Logic Controller (PLC) to control automatic operation. The bottle feeding chainway adopts air conveying, which cooperates with the main engine frequency converter to make the bottle feeding operation more stable and reliable. The photoelectric detection monitors the operation status of each component, so it has a high degree of automation and simple operation. The capping method can be optional with aluminum metal anti-theft caps and plastic caps, which is an ideal choice of mineral water filling equipment for beverage manufacturers.
• Bottle Packaging System: As the terminal component of mineral water production equipment, it includes a blow dryer, labeling machine/shrink labeling machine (bottle body identification), shrinker, inkjet printer (marking production date and product information), automatic film wrapping machine (bottle arrangement and packaging) and conveying line. It can be flexibly switched according to packaging needs, adapting to various scenarios such as small bottle packaging and large barrel independent packaging, improving the regularity of product appearance, complying with the standardized requirements of the 2026 industry standards for label marking, ensuring that product labels clearly mark relevant information and eliminating misleading expressions. Among them, the large barrel water packaging line is additionally equipped with a large barrel cap remover, barrel brushing machine, automatic barrel washing, filling and capping machine, lamp inspection machine and bagging machine; the bottled water packaging line is equipped with a lamp inspection machine and a heat shrinkable film packaging machine, which can be flexibly configured according to market needs to improve the terminal packaging function of mineral water production equipment.
• Palletizing System: As the finishing component of mineral water production equipment, it adopts automatic manipulator stacking to realize rapid palletizing and warehousing of finished bottles/barrels, reduce labor intensity, improve warehousing efficiency, and adapt to the production needs of large-scale mineral water production lines. It is especially suitable for production scenarios with a capacity of ≥10,000 bottles per hour. It can be equipped with a wrapping machine and a box conveying system to improve the finished product warehousing and conveying process, forming a closed-loop operation of the entire set of mineral water production equipment.

III. Special Configuration and Production Capacity of Reytop Small Bottle Mineral Water Production Line

Reytop small bottle mineral water production line has a complete equipment composition, including a complete set of small bottle mineral water filling and packaging production line, such as mineral water treatment system, automatic bottle blowing machine, wind conveying line, cap conveying and sterilizing machine, cap arranging and cleaning machine, bottle washing, filling and capping three-in-one machine (core of small bottle mineral water filling equipment), blow dryer, shrink labeling machine, inkjet printer, palletizer, wrapping machine, filled bottle conveying system, box conveying system and electrical control system. Auxiliary mineral water production equipment such as automatic bottle arranging machine, manual bottle arranging system, full/semi-automatic bottle washing machine, labeling machine, carton packaging machine and nitrogen adding machine can be selected according to enterprise needs.

In terms of production capacity, Reytop has formed a complete series of small bottle mineral water production lines, which can supply a production capacity of 2,000 bottles per hour to 36,000 bottles per hour (calculated based on 500ml PET bottles), adapting to the small bottle mineral water production needs of enterprises of different scales. Whether it is a small water plant or a large-scale small bottle mineral water production enterprise, it can find a suitable small bottle mineral water production line equipment scheme, helping enterprises optimize the production capacity layout of the small bottle mineral water production line and fit the trend of capacity expansion in the 2026 mineral water industry.

IV. Core Characteristics of Mineral Water Production Line and Advantages of Raw Water Adaptation

(I) Core Characteristics of the Production Line

1. Strong Compliance: The complete set of mineral water production equipment meets the requirements of the 2026 new mineral water industry standards, covering all links such as water source control, sterile production and label marking. It can help enterprises successfully complete the handling of SC production license and daily supervision and inspection, avoid the risk of rectification or elimination due to non-compliant mineral water production equipment, and highlight the compliance advantage of Reytop mineral water production equipment.
2. High Degree of Automation: Reytop mineral water production line adopts a PLC intelligent control system, combined with photoelectric detection technology, to realize full-process automatic operation, reduce manual intervention, lower labor costs, improve the production stability of the mineral water production line, and reduce the failure rate of mineral water production equipment. Especially suitable for complex environments such as the plum rain season, the failure rate of mineral water production equipment can be reduced by more than 60% through actual measurement, highlighting the automation advantage of the mineral water production line.
3. Wide Adaptability: Reytop mineral water production line can adapt to the production needs of different packaging types and specifications, with rapid bottle type switching. At the same time, it can optimize the parameters of mineral water production equipment according to the raw water characteristics of different geological structure areas, adapt to various natural mineral water sources, and meet the needs of mineral water production enterprises of different scales and water sources.
4. Controllable Quality: Reytop mineral water production line adopts full-process closed-loop control from raw water purification to finished product packaging. The filling accuracy of the mineral water filling equipment reaches 99.9%, and the sterilization is thorough, which can ensure that the microorganisms, heavy metals and other indicators of mineral water meet the standards. At the same time, it retains the natural mineral nutrients, meeting the healthy drinking needs under consumption upgrading, and reflecting the quality advantage of mineral water production equipment.
5. Energy Saving and High Efficiency: Reytop mineral water production equipment adopts lightweight design and energy-saving components, with unit energy consumption 13% lower than that of traditional mineral water production equipment. At the same time, it improves the production efficiency of the mineral water production line, reduces raw material waste, helps enterprises reduce the operation cost of mineral water production, and highlights the energy-saving advantage of mineral water production equipment.

(II) Adaptation to Physical and Chemical Characteristics of Raw Water

The elements contained in mineral water are determined by the different geological structure areas where the mineral water is produced. Reytop mineral water production line can optimize the configuration of mineral water production equipment according to the characteristics of different raw water, adapt to various natural mineral water sources, perfectly match the mineral water production equipment with the raw water characteristics, and ensure product quality. It is specifically divided into the following two types:

1. Mineral water in granite fractures: Most of them are rich in metasilicic acid, followed by metal elements such as Cu, Pb and Zn, belonging to low-mineralization light mineral water. Reytop can optimize the ultrafiltration parameters of the mineral water treatment system, accurately retain core minerals such as metasilicic acid, remove excess heavy metals, and make the mineral water production equipment adapt to the characteristics of this type of raw water.
2. Mineral water occurring in fractures of volcanic rocks (basalt, andesite, tuff, etc.): Most of them are calcium bicarbonate or calcium-magnesium bicarbonate type, low-mineralization, high metasilicic acid content. Compared with granite, they have low F and Rn content and high calcium, magnesium and strontium content. Reytop can adapt to the mineral composition of this type of water source through a customized mineral water pretreatment system, ensure that the product meets the threshold requirements of the industry standards for mineral content, and highlight the customization advantage of mineral water production equipment.

V. Core Requirements for Natural Mineral Water Production and Reytop Service Advantages

The core requirements for natural mineral water production are: passing professional testing, meeting the mineral water standards, and using the natural mineral water evaluation report approved by the geological and mineral department as the basis to ensure that the water source area is free from pollution. It is recommended that enterprises build factories reasonably on the spot to reduce the pollution risk during raw water transportation, which is highly consistent with the upgraded requirements of the 2026 industry standards for water source area protection, and is also one of the core design concepts of Reytop mineral water production line technical scheme.

As a professional mineral water equipment manufacturer, Reytop not only provides a complete set of compliant mineral water production equipment, but also offers full-chain service advantages for mineral water production line technical schemes: combining years of experience in the mineral water production equipment industry, it provides enterprises with customized mineral water production line technical schemes to adapt to different raw water characteristics and production scales; it is equipped with a professional after-sales team to provide services such as installation and commissioning of mineral water production equipment, personnel training and fault maintenance to ensure the stable operation of mineral water production equipment; it keeps track of the update of 2026 industry standards in real time, provides enterprises with suggestions for upgrading mineral water production equipment, helps enterprises operate in compliance for a long time, and relies on professional mineral water production equipment and technical schemes to help enterprises seize the development opportunities of the industry.
