Reytop Machinery Introduces the Working Principle and Functions of the CO₂ Mixer in Carbonated Beverage Production Lines
Keywords: carbonated drink production line, CO2 mixer, carbonation system, soda water filling machine, sparkling water production line, beverage mixing system, turnkey beverage equipment, Reytop Machinery.
The carbonated beverage production line designed by Reytop Machinery is built around the core process — from raw material treatment to final packaging — ensuring high efficiency, product stability, and full automation.

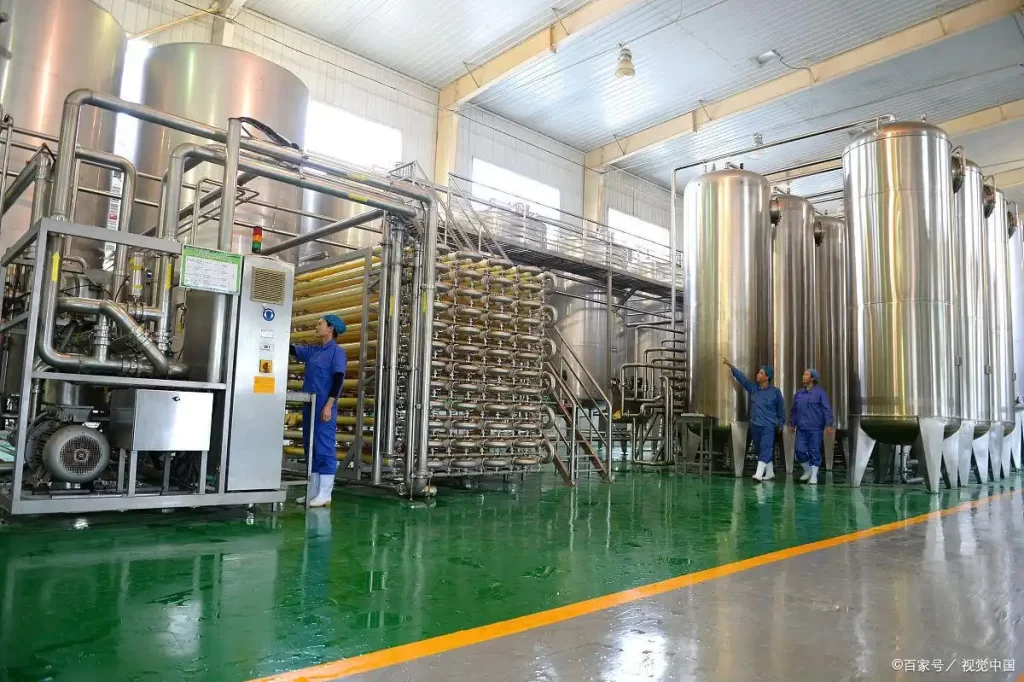

💧 Water Treatment System
Function: Multi-stage filtration (sand, carbon), reverse osmosis (RO), and UV sterilization remove impurities, odors, and microorganisms to guarantee beverage-grade water quality.
Key Point: RO membranes reduce water hardness to improve carbonation stability; UV sterilization replaces chemical disinfection, minimizing residue risk.
⚙️ Mixing & Preparation System
Main Components: Sugar melting tank, mixing tank, filters, beverage pumps.
Function: Mix water, syrup, and flavors proportionally. Steam-heated sugar tanks ensure complete sugar dissolution, while mixing tanks with agitators guarantee uniform blending.
Key Point: High-shear sugar tanks accelerate dissolution and prevent crystallization; dual filters improve beverage clarity and mouthfeel.
🫧 Core Equipment: CO₂ Mixer
Function: The CO₂ mixer combines the prepared beverage with carbon dioxide to form sparkling water. Using a high-pressure pump and atomization system, it increases the contact area between CO₂ and liquid, enhancing absorption efficiency.
Key Point:
• CO₂ filter made of 304 stainless steel purifies the gas to maintain carbonation quality.
• Temperature control at 0–3°C maximizes CO₂ solubility and bubble stability.
❄️ Cooling System
Components: Chiller unit and plate heat exchanger.
Function: Reduce the beverage temperature to 0–3°C, creating optimal carbonation conditions.
Key Point: Efficient cooling ensures proper CO₂ retention; high-quality chillers and corrosion-resistant heat exchangers enhance stability.
🧴 Filling & Capping System
Function: The isobaric filling machine fills bottles under CO₂ pressure to prevent foaming or underfilling. The magnetic capper ensures tight sealing for PET, glass, and can formats.
Key Point: Precise level control and automatic adaptation to various bottle types ensure consistent filling performance.
📦 Packaging System
Includes: Warming machine, air dryer, coding machine, labeling machine, film wrapper.
Function: Warming removes condensation, drying prepares bottles for labeling, and automatic shrink-wrapping efficiently packs 12-bottle sets.
Key Point: Auto sleeve labeling machines are ideal for high-speed lines; film wrapping is cost-effective for mass production.
🔧 Auxiliary Equipment
• CIP Cleaning System: Ensures hygienic cleaning of tanks and pipelines with acid/alkali circulation.
• Steam Boiler (Optional): Supplies steam to the sugar melting and warming units.
• Air Compressor: Powers pneumatic components such as filling valves and cappers.
🚀 Reytop Machinery – Turnkey Solutions for Carbonated Beverage Plants
With deep experience in carbonated drink production lines, Reytop Machinery provides fully automated soda water filling systems, CO₂ mixers, and complete beverage processing solutions designed for high efficiency, hygiene, and long-term reliability.
